Rhino PD-110 Pneumatic Post Driver

Using Rhino Post Driver PD-110Product Specifications

Medium/Heavy Duty
Air Consumption (CFM@100 psi) 64
Wt. lb (kg)109 (49.5)
Master Chuck 4-1/4″ (107.9mm) ID

Applications

1-1/4″ to 1-1/2″ Pipe           X*             2 to 2.75 lbs/ft Channel Post      X*
1-5/8″ Round Post               X*             1.2 to 1.5 lbs/ft Channel Post      X*
2″ Pipe                                  X*             3 to 4 lbs/ft Channel Post      X*
2-1/2″ Pipe                           X*             Channel Post Breakaway Anchor  X*#+
3” Pipe                                  X*#+        C Post      X
3-1/2″ Pipe                           X+            4” x 4” Wood Post      X-
4” Pipe                                  X-#+         4” x 6” H Column Guardrail Post   X-#+
T-Posts                                  X*
Telespar Post                         X*
Telespar Post Breakaway Anchor 2-1/2″ X*#+

-An optional master chuck is required
*An adapter is required
+A driving cap is required
#Indicates a combination of accessories is required

What the PD-110 Drives

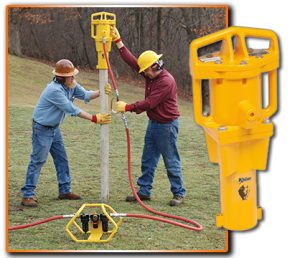

The Rhino PD-110 Pneumatic Post Driver combines easier handling than an equipment supported driver but has a slight advantage over the PD-55 in driving speed and heavy soil tolerance. Plus, the PD-110 provides better soil stabilization when driving the post at a deeper soil level is required. The PD-110 takes post driving capabilities to the next level. It is suited for driving 2″ to 4″ pipe and tube, structural concrete forms, pin piles, dock piles, and 4″ x 4″ wood.

See all of our Rhino post drivers.

PD-110 Features

  • At 109 pounds, with an alloy steel piston, the PD-110 provides better handling in tough sites.
  • Delivering up to 1700 blows per minute, and capable of driving a 2” post, ten to fifteen feet deep.
  • No additional equipment required. Can be lifted by two people.
  • Additional driving options possible with easy bolt-on adapters.

PD-110 FAQs

What size compressor does the PD-110 need?

It uses 64 CFM at 100 psi, so choose a compressor that delivers at least that. Run it with a filter-regulator-lubricator in the air line.

Can one person run it?

The PD-110 weighs 109 pounds and can be lifted by two people, so plan on two people to position it.

Will it drive 4×4 wood posts?

Yes. It drives 4″ x 4″ wood posts with an optional master chuck.

What chuck adapters fit it?

The PD-110 has a 4-1/4″ I.D. master chuck. Many posts need a bolt-on chuck adapter, an optional master chuck or a driving cap. The Applications list above shows which, or call 866.786.1009 for the right adapter.

PD-110 or PD-140?

The PD-110 is the lighter choice at 109 pounds. The PD-140 weighs 141.2 pounds and is built for heavier work such as guardrail and pile driving. Both use 64 CFM at 100 psi. See the Rhino PD-140.
